Visualizations

Stabilizers have a plot recipe that can be used with Plots.jl or Makie.jl. It simply displays the corresponding parity check matrix (extracted with stab_to_gf2) as a bitmap image. Circuits can be visualized with Quantikz.jl.

Importing the aforementioned packages together with QuantumClifford is necessary to enable the plotting functionality (implemented as package extensions).

Plots.jl

In Plots.jl we have a simple recipe plot(s::Stabilizer; xzcomponents=...) where xzcomponents=:split plots the tableau heatmap in a wide form, X bits on the left, Z bits on the right; or xzcomponents=:together plots them overlapping, with different colors for I, X, Z, and Y.

using QuantumClifford, Plots
plot(random_stabilizer(20,30), xzcomponents=:split)
Example block output
using QuantumClifford, Plots
plot(canonicalize!(random_stabilizer(20,30)))
Example block output
using QuantumClifford, Plots
plot(canonicalize_gott!(random_stabilizer(30))[1], xzcomponents=:split)
Example block output
using QuantumClifford, Plots
plot(canonicalize_gott!(random_stabilizer(30))[1]; xzcomponents=:together)
Example block output
using QuantumClifford, Plots
plot(canonicalize_rref!(random_stabilizer(20,30),1:30)[1]; xzcomponents=:together)
Example block output

Makie.jl

Makie's heatmap can be directly called on Stabilizer.

using QuantumClifford, CairoMakie
s = S"IIXZ
      ZZIZ
      YYIZ
      IIIZ
      ZZXZ"
f, ax, p = CairoMakie.heatmap(s)
hidedecorations!(ax); hidespines!(ax); # remove ticks and spines
ax.aspect = DataAspect(); # set a one-to-one aspect ratio
f

A full Makie recipe is available as well (supporting xzcomponents)

using QuantumClifford, CairoMakie
s = S"IIXZ
      ZZIZ
      YYIZ
      IIIZ
      ZZXZ"
f, ax, p = stabilizerplot(s, xzcomponents=:together)
hidedecorations!(ax); hidespines!(ax)
ax.aspect = DataAspect()
f

You can easily add colorbars (and change the colormap) as well:

using QuantumClifford, CairoMakie
fig = Figure()
ax, p = stabilizerplot(fig[1, 1], s, colormap=cgrad(:heat, 4, categorical = true))
hidedecorations!(ax)
hidespines!(ax)
xlims!(ax, 0.5, size(s,2)+0.5) # otherwise there is padding
ylims!(ax, 0.5, size(s,1)+0.5) # otherwise there is padding
# set the aspect ratio of the plot
ax.aspect = DataAspect()
# set the aspect ratio of the layout
colsize!(fig.layout, 1, Aspect(1, size(s,2)/size(s,1)))
Colorbar(fig[1, 2], p, ticks = (0:3, ["I", "X", "Z", "Y"]))
fig
Example block output

Or set a completely custom set of colors:

fig = Figure()
ax, p = stabilizerplot(fig[1, 1], s, colormap=cgrad([:lightgray,RGBf(1,0.4,0.4),RGBf(0.3,1,0.5),RGBf(0.4,0.4,1)], 4, categorical = true))
hidedecorations!(ax)
hidespines!(ax)
xlims!(ax, 0.5, size(s,2)+0.5)
ylims!(ax, 0.5, size(s,1)+0.5)
ax.aspect = DataAspect()
colsize!(fig.layout, 1, Aspect(1, size(s,2)/size(s,1)))
Colorbar(fig[2, 1], p, ticks = (0:3, ["I", "X", "Z", "Y"]), vertical = false, flipaxis = false)
fig
Example block output

You might have noticed, Makie recipes do not let you edit the axes or figure, rather they only permit you to set the plot content. Which is why we use hidedecorations!, hidesplines!, and DataAspect to further modify the plot. However, these defaults are also available in stabilizerplot_axis.

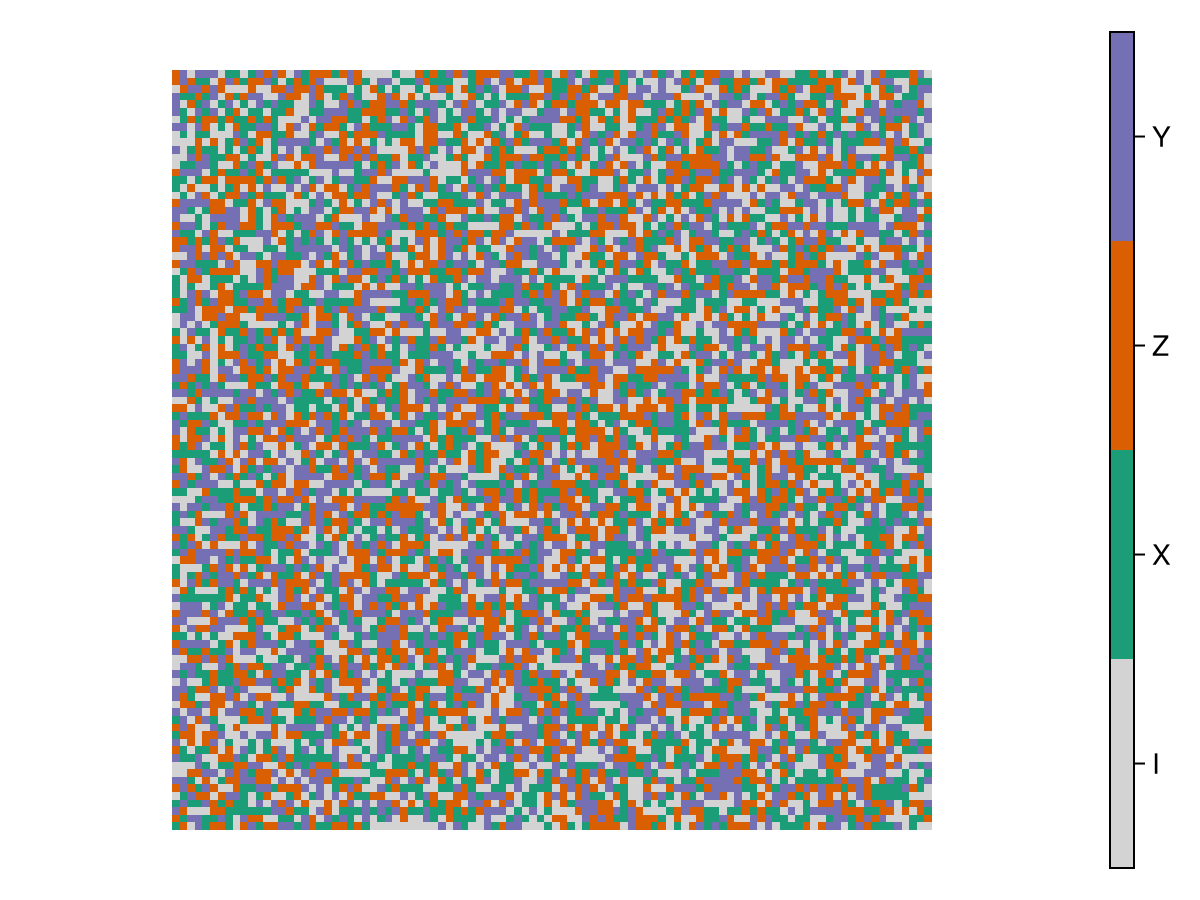

using QuantumClifford, CairoMakie
f=Figure()
stabilizerplot_axis(f[1,1],random_stabilizer(100))
f
Example block output

Quantikz.jl

With the Quantikz library you can visualize gates or sequences of gates.

using QuantumClifford, Quantikz
circuit = [sCNOT(1,2), SparseGate(random_clifford(4), [1,4,5,6]), sMZ(4)]
Example block output
